ELECTRO-COATING FOR AIDIL COLOUR SDN BHD

STATUS: 25/JUN/2012



STATUS: Bending work for spray booth

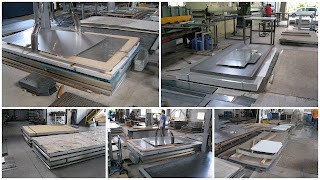

STATUS: Material for oven partition, spray booth
                 - Stainless steel     = 15ton
                 - Oven partition    = 29ton
                 - Structure            = 68 ton

 STATUS: Exhaust ducting

 STATUS: Oven partition frame

 STATUS: Oven partition

 STATUS: Spray booth, Mist spray booth & Spray booth foot

STATUS: ED sub tank, Flesh UF spray tank

ED System Status: 11/Jun/2012 - In progress of fabricating side spray booth

ED Oven Status: 11/Jun/2012 - In progress of fabricating Oven bottom partition

Revision: 23, The layout has revise to R-23, due to adding LPG bulk tank and a location a area for future espension for other plating system upgrade, for detail please refer to below mention

1. Additional a LPG bulk tank at the conner of the factory area
2. Re location of Reverse Osmosis system to near oven area
3. Re location of waste water treatment to Reeverse Osmosis area
4. Modify the road to "R4320" as the dimesion, in order to let all trailer easy passing though and smooth exit during any emergency occur...

This is the ED Coating setup master schedule



Herewith the detail master schedule

a) Installation : Aug/2012

b) Commisioning: 15~30/Sep/2012





The ED coating system after setup will be almost silimar view as above picture

Aidil Colour Sdn Bhd factory layout for Conveyor ED Coating system, This setup is one of the huge system in Klang valley area....

Conveyor ED Coating system for steel part's these system come with fully auto conveyor system from Pretreatment >>> ED Coating>>>Curing oven
a) Machine speed  : 1500mm/min
b) Max part size    : L-1500mm x W-300mm x H-1000mm
c) Process              : Steel Process
